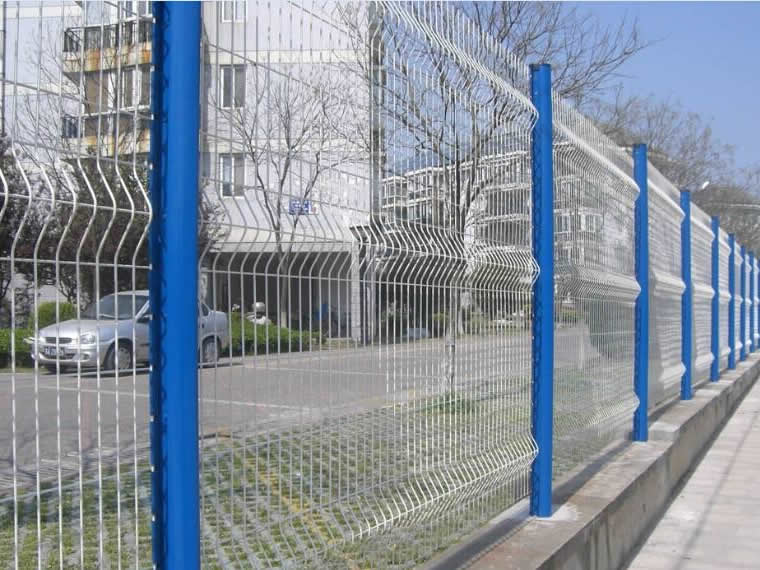

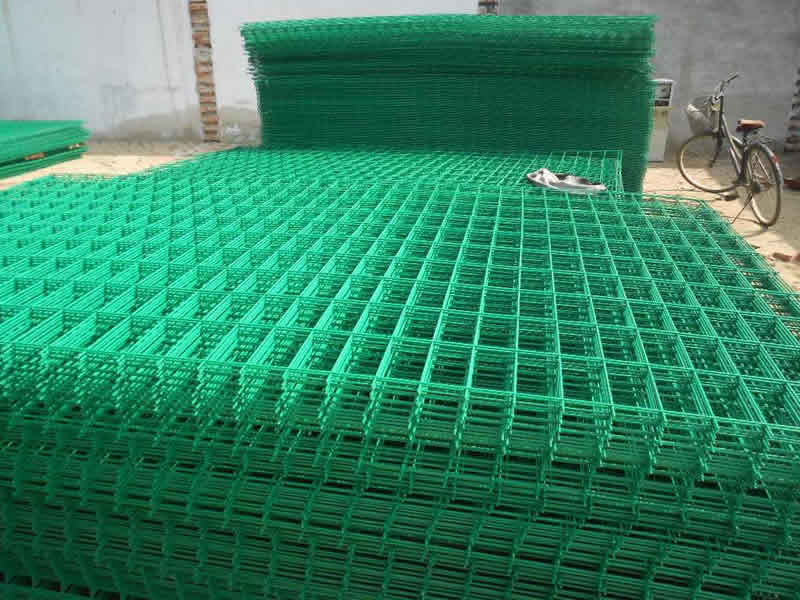

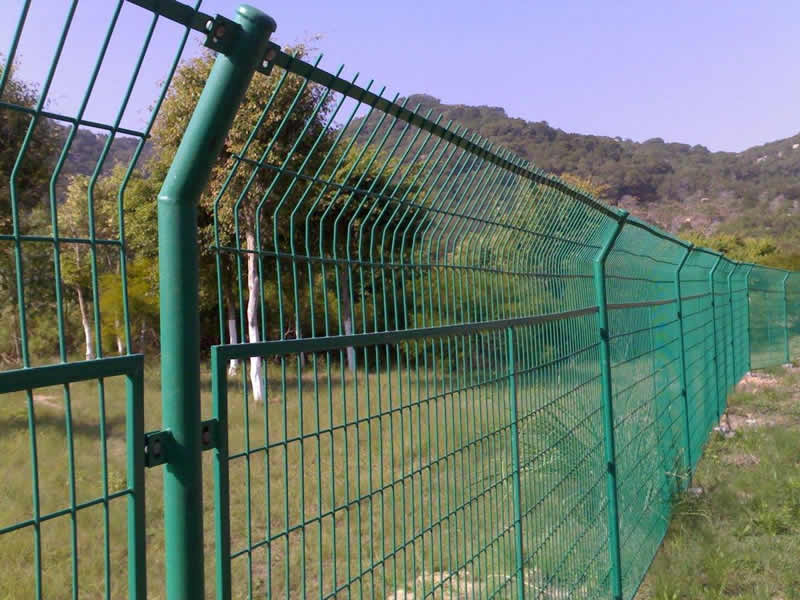

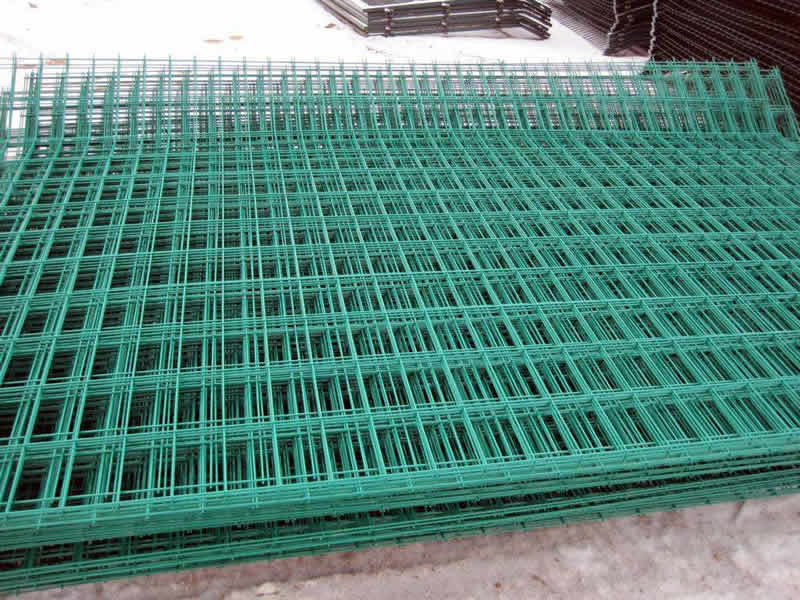

Wire Mesh Fence
| Place of Origin: | Anping, Hebei, China |
| Brand Name: | XiangFeng Supply |
| Payment terms: | T/T or L/C |
 |
Wire mesh fence is also known as safety mesh fence, wire mesh grating, galvanized fence, fencing panel and so on.
Material: low carbon steel wire,galvanized wire
Surface treatment: hot galvanized ,electric galvanized ,spraying ,PVC coating
Standard fence length: 2m, 2.5m.
Process: Made through weaving, punching and welding.
Features: Corrosion resistant, age resistant, sunshine proof, weather proof.
Corrosion Form: Electric galvanized, Hot-dipped galvanized, PVC coated, Electric galvanized then PVC spraying, Electric galvanized then PVC coated.
Application: Fencing and protection for road, railway, airport, residence district, seaport, garden, feeding and husbandry.
| Fence Height cm | Fence Length(2m) | Fence Length(2.5m) | ||||||||
| Wire Gauge | Wire Diameter mm | Opening cm | Weight kg/piece | Fixing Pole | Wire Gauge | Wire Diameter mm | Opening cm | Weight kg/piece | Fixing Pole | |
| Weight kg/set | Weight kg/set | |||||||||
| 60 | 10#/8# | 3.2 4 | 5X12 | 6.5 | 1.9 | 10#/8# | 3.2 4 | 5X12 | 8.6 | 1.9 |
| 80 | 10#/8# | 3.2 4 | 5X12 | 7.5 | 2.3 | 10#/8# | 3.2 4 | 5X12 | 9.9 | 2.3 |
| 100 | 10#/8# | 3.2 4 | 5X12 | 8.5 | 2.7 | 10#/8# | 3.2 4 | 5X12 | 11.2 | 2.7 |
| 120 | 10#/8# | 3.2 4 | 5X12 | 9 | 3.1 | 10#/8# | 3.2 4 | 5X12 | 11.9 | 3.1 |
| 150 | 10#/8# | 3.2 4 | 5X12 | 11 | 3.7 | 10#/8# | 3.2 4 | 5X12 | 14.5 | 3.7 |
| 180 | 10#/8# | 3.2 4 | 5X12 | 12.5 | 4.3 | 10#/8# | 3.2 4 | 5X12 | 16.5 | 4.3 |
| 200 | 10#/8# | 3.2 4 | 5X12 | 13.5 | 4.7 | 10#/8# | 3.2 4 | 5X12 | 17.8 | 4.7 |
Note: we will produce according to the specification you provided.You can decided the specification of the fence.
